Pressure sensor

Characteristics

At a glance

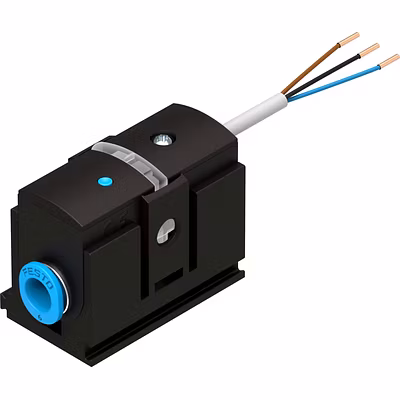

The pressure sensor SDE5 is the cost-effective alternative for quick and easy pressure monitoring. This smart component instantly provides information about the actual

pressure and is an equally effective device for object detection as it is for compressed air, regulation and vacuum detection. It can be used wherever simple sensing of

the actual pressure is required:

• Compressed air monitoring

• Regulator monitoring

• Confirmation of suction in vacuum technology

• Object detection via back pressure

• Selectable output functions

• Teach-in function for programming

• Very short mounting times thanks to QS connections and wall brackets that can be linked

• Very quick switching-point adjustment by simply pressing a button

• Switching status indicated by an LED visible from all sides

• Relative pressure or differential pressure measurement

• 5 Pressure measuring ranges: 0 ... -1 bar, -1 ... 1 bar, 0 ... 2 bar, 0 ... 6 bar, 0 ... 10 bar

• Analogue output: 0 ... 10 V

• Electrical outputs: 1 switching output PNP or NPN
